Ultra-thin and highly transparent, easy to install. It is self-adhesive and can be easily pasted to existing railing glass, window surfaces and building curtain walls without the need for complex additional steel structures and without affecting the original structure of the building.
Highly transparent and easy to install
LED transparent film, also known as photoelectric film, is a kind of use of RGB-LED lamp beads, surface attached to the film substrate, and then film pressure encapsulation, made of thin and transparent display film, the technology made of LED film has the film thickness of < 2mm, flat front and back, high transparency, good durability, easy maintenance and other characteristics. It can be widely used in glass curtain wall, window display, advertising media, space decoration, partition decoration, home design, landscape lighting, commercial display, functional signage, etc.
Advantages of LED display film products
* Adjustable high brightness
With different pixel densities, the conventional 3000cd/㎡ highlights 5000cd/㎡, and the customized > 7000cd/㎡
* Thickness is ultra-thin
The lamp beads are hidden, the conventional front and rear flat film < 2.5mm, and the ultra-thin customized front and rear flat film<1.5mm>
* High transparency
Approximately 50-90% physical transparency at different points and 99% visual transparency at a reasonable viewing distance.
* Cut and stitch
Linear transmission of signals ensures that the screen can be cut and spliced.

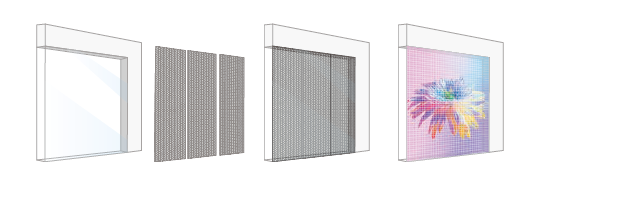

* Easy to install
The film is lightly attached to the glass, and the controller position is separated and installed, and the plug connection is completed
*Non-destructive repair
The surface protective film can be replaced at any time to ensure that the screen can be renewed at any time, and the bad film that cannot be repaired on site can be directly replaced with a new one.

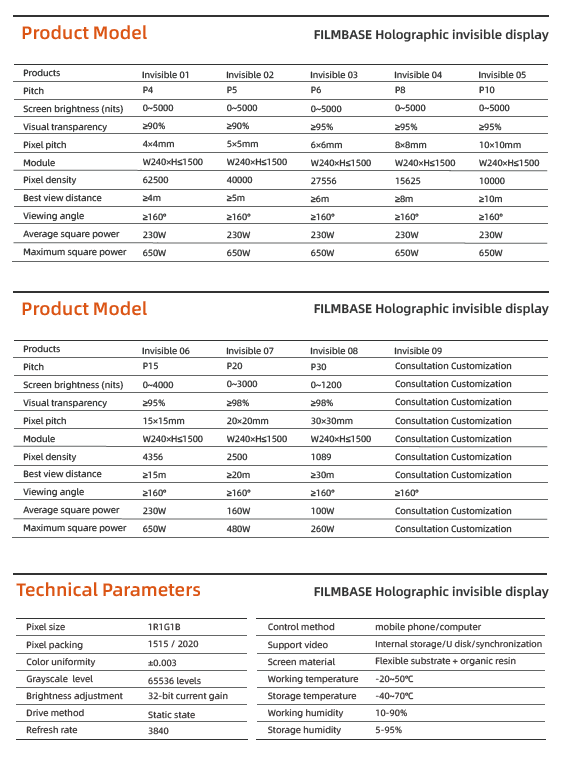

LED Display Film Products:
Common models are P4, P8, P10, P20, where the number after p indicates the dot spacing, the unit is mm.For example, the distance between P2 points is 2mm, P3 points are 3mm, and P4 points are 4mm. The smaller the dot spacing, the higher the pixels per unit area, the more LEDs, the higher the resolution, and the clearer the display effect.
P10 LED Transparent Film
P10LED transparent film
Application scenarios
It is widely used in glass curtain wall, window display, advertising media, space decoration, partition decoration, home design, landscape lighting, commercial display, functional signage, etc.
