FILMBASE smart dimming film

self-adhesive 87-88% ultra-transparent dimming film

intelligent dimming film, also known as PDLC liquid crystal dimming film (referred to as dimming film), is a new type of electronic light control product. By applying an external control power supply, the dimming film can be quickly transformed between transparent and atomized. According to the use of dimming film, it can be divided into self-adhesive film and laminated film. Self-adhesive films can be applied directly to existing glass and are of the finished product type. The laminated film can be used as the core material of dimming glass, sandwiched between two pieces of glass, and made into intelligent dimming glass by high temperature and high pressure.

PDLC film is opaque when there is no electric field. When an alternating current is applied, the liquid crystal molecules are arranged in an orderly manner, and the dimming film changes from an opaque state (OFF state) to a transparent state (ON state).

self-adhesive 87-88% ultra-transparent dimming film

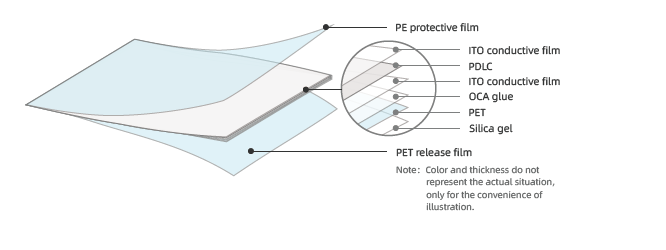

self-adhesive LCD dimming film is a backing adhesive (AB glue) on one side of the dimming film, which is used to laminate the target glass. Compared with the basic dimming film, this 87%-88% light transmittance dimming film has higher transmittance, lower haze, and is clearer and brighter when used with power.

self-adhesive LCD dimming film is covered with adhesive (AB glue) on one side of the dimming film, which has good security and privacy protection function of controlling transparency or not; it can also connect the separated space, bring changes to the space, break the cramped original space, bring depth, realize the communication between spaces, maintain the consistency of space, beautify the space, and enhance the sense of hierarchy of space. Yuguang FILMBASE dimming film has excellent characteristics such as high transparency and high stability. High light transmittance, low haze, high light transmittance when opaque, will not block visible light. It can not only meet the needs of light brightness in different occasions, but also effectively block ultraviolet and infrared rays, provide a comfortable light environment, and provide a comfortable light environment. The transmittance of the high-transmittance intelligent liquid crystal dimming film is much greater than the transmittance of the dimming film on the current market.

Compared with the finished laminated dimming glass, the self-adhesive dimming film is more economical, through one-button control, the same effect as the dimming glass, but the operability is more flexible, the production time is short, and the dimming film can be installed immediately. For non-replaceable glass walls or projects that require thickness, as well as projects that want to replace traditional curtains with high-tech dimming films, self-adhesive dimming films are undoubtedly the best choice. The self-adhesive dimming film can be 3D printed with different patterns on the dimming film, or internally etched with different patterns, which can be used for publicity, and can also be used as a rear projection screen, with multiple functions integrated into one film. The self-adhesive dimming film can realize the transparency of power-on, power-off fog, and switch the desired state with one click.
