Dye liquid crystal film is a new type of material that can control the light transmittance realized by dye liquid crystal technology, which can change its absorption and transmittance characteristics under the action of an external electric field. The self-adhesive dye liquid crystal film is used to laminate the target glass by applying adhesive (AB glue) on one side of the film.
Energy saving and environmental protection can control the luminous flux
Dye liquid crystal film is a new type of material that can control the light transmittance realized by dye liquid crystal technology, which can change its absorption and transmittance characteristics under the action of an external electric field. When no electric field is applied, the liquid crystal molecules and dye molecules will arrange themselves to form a specific structure, so that light cannot pass through the film. When an electric field is applied, the liquid crystal molecules rearrange and change the characteristics of the light transmitted by the film, thus achieving a controllable light transmittance. Dye-based liquid crystal film-based products enable glass to be dimmed and tinted from opaque to transparent, enabling user-controlled shading and glare mitigation.
Dye liquid crystal dimming film has the advantages of fast response, wide control range and high contrast, so it is widely used in optical display, optical traffic signal system, dimmable curtain and other fields, and also provides the best light control, thermal control and energy-saving solutions for the construction, automotive and aviation industries. It can adjust the degree of light transmission according to needs, realize the regulation and control of light, improve the ambient brightness, save energy, and improve the user experience.

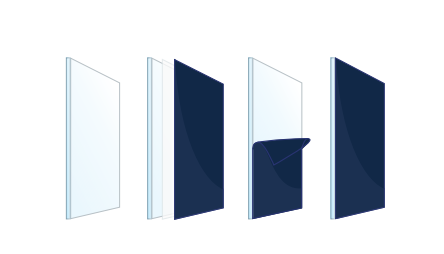

Self-adhesive dye liquid crystal film
The self-adhesive dye liquid crystal film is coated with adhesive (AB glue) on one side of the film, which is used to laminate the target glass.
Dye liquid crystal film product features
Intelligent control
Equipped with intelligent control systems, including electronic control, APP, remote control, artificial intelligence integration and customization.
Quick switching
It only takes 0.1 seconds to atomize and switch to the transparent state, and the response time is fast and without delay.
Rear projection display
With the projector, it can be changed to an ultra-high-definition rear projection screen.
